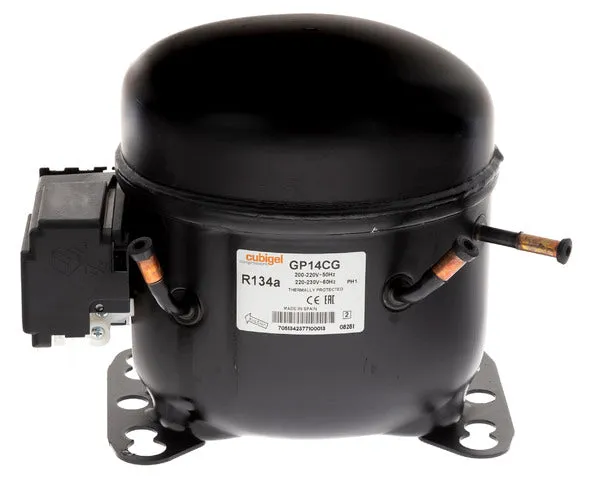

Compresor GP14CG R134A 3/8 CUBIGEL LBP

El compresor hermético CUBIGEL-HUAYI modelo GP14CG R134A 3/8 LBP está diseñado para aplicaciones de baja presión de retorno (LBP). Utiliza refrigerante R134a y opera con un voltaje de 200-230V a 50/60Hz. Ideal para sistemas de refrigeración que requieren una potencia nominal de 3/8 hp.

Características Principales:

• Nominal Power: 3/8 hp
• Refrigerant: R134a
• Displacement: 14,17 cm³
• Voltage/Frequency: 200-220/220-230V 50/60Hz ~1
• Net Weight: 10,62 Kg
• Oil type: ISO VG 32 ESTER
• Oil charge: 400 cm³

Especificaciones Técnicas:

Parámetro	Valor
Cooling Capacity (ASHRAE)	310 kcal/h
COP (ASHRAE)	1,18 W/W
EER (ASHRAE)	1,02 kcal/Wh
Input Power (ASHRAE)	305 W
Current (ASHRAE)	2,00 A
Cooling Capacity (CECOMAF)	262 W
COP (CECOMAF)	0,91 W/W
EER (CECOMAF)	0,78 kcal/Wh
Input Power (CECOMAF)	289 W
Current (CECOMAF)	1,95 A
Evaporating Temp. (ASHRAE LBP B)	-23,3 °C
Condensing temp. (ASHRAE LBP B)	55,0 °C
Liquid temp. (ASHRAE LBP B)	32,0 °C
Ambient temp. (ASHRAE LBP B)	32,0 °C
Suction temp. (ASHRAE LBP B)	32,0 °C
Voltage/Frequency (ASHRAE LBP B)	230 V 60 Hz
Evaporating temp. (CECOMAF LBP A)	-25,0 °C
Condensing temp. (CECOMAF LBP A)	55,0 °C
Liquid temp. (CECOMAF LBP A)	55,0 °C
Ambient temp. (CECOMAF LBP A)	32,0 °C
Suction temp. (CECOMAF LBP A)	32,0 °C
Voltage/Frequency (CECOMAF LBP A)	230 V 60 Hz
Locked Rotor Amps (LRA)	17,20 A
Max. Cont. Current (MCC)	3,30 A
Main W. resist. at 25°C	5,28 Ω
Start W. resist. at 25°C	33,32 Ω

Compatibilidad:

• Compatible refrigerants: R134a, R1234yf

Aplicaciones:

• Application: Low Back Pressure (LBP)
• Evaporating Temperature Range: -35,0 °C to -10,0 °C
• Cooling: Fan cooled
