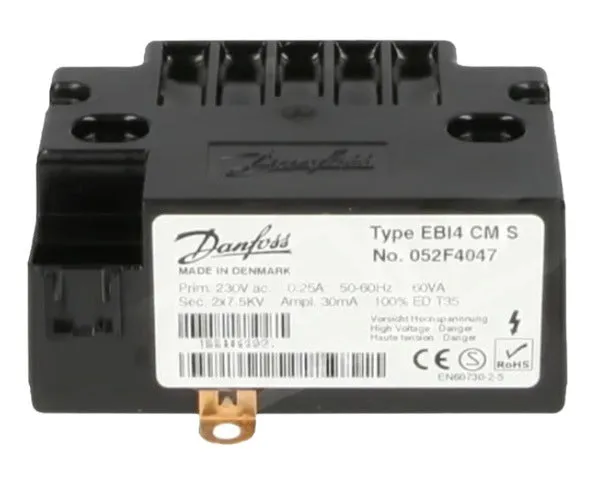

DANFOSS TRANSFORMADOR QUEMADOR EBI4 CMS | 052F4047

Este transformador de encendido está diseñado para garantizar un encendido fiable y eficiente en quemadores de gas y diésel. Su diseño compacto y robusto lo convierte en un recambio ideal para sistemas de calefacción. Diseñado para garantizar un encendido fiable y eficiente de quemadores de gas y diésel. Compacto y robusto. No incluye cable conector 052F5054 (057.00.0061).

Especificaciones Técnicas

Característica	Valor
Gross weight	0.344 Kilogram
Net weight	0.342 Kilogram
Volume	0.391 Liter
Type	EBI4 CM
Product group	Ignition Units
Ambient temperature [°C] [max]	60 °C
Ambient temperature [°C] [min]	-10 °C
Approval	CE
UKCA
CE mark	Yes
China RoHS compliance	Yes
Contains batteries	No
Description	EBI4 SERVICE #3
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
7(c)-I
Grade of enclosure primary	IP40
Housing	Standard
Main fuse [A] [Min]	10 A
Packing format	Single pack
Power consumption [VA]	60 VA
Primary current [A]	0.25 A
Primary frequency [Hz]	50/60
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	9bbbc11e-e994-4b41-a315-907e4ca9cc5d
SCIP dossier product name	Ignition unit EB14
Secondary connection	short circuit current [mA]
Secondary peak voltage [kV]	2 x 7.5
Storage temperature [°C] [Max]	85 °C
Storage temperature [°C] [Min]	-25 °C
Supply voltage [V] AC	230 V
Supply voltage [V] AC [max]	255 V
Supply voltage [V] AC [min]	187 V
UL mark	No.

Modelos Compatibles

• EBI4 C series
• EBI4 SERVICE #3
• 052F0052
• 052F0070
• 052F0071
• 052F0077
• 052F4034
