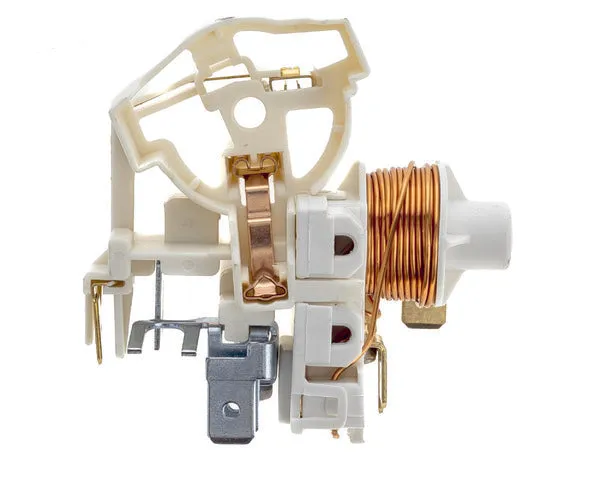

Protector relé compresor GP12TB

Este producto es un protector relé compresor diseñado para sistemas de High/Mid. back pressure. Ofrece un rendimiento fiable y es compatible con el refrigerante R134a.

Características y Especificaciones Técnicas:

Característica	Valor
Displacement	12.05 cm3
Diameter	29.37 mm
Stroke	17.78 mm
Net Weight	11.2 Kg
Oil type	ISO VG 22 ESTER
Oil charge	350 cm3
Approximate Power	3/8 CV
Voltage/Frequency	220V 50Hz
Voltage range	187-264V
Code	63,112
Type	CSIR
Phase number	1 PH
Locked rotor current	13.5 A
Main W. resist. at 25°C	5.75 Ω
Start W. resist. at 25°C	20.3 Ω
Application	High/Mid. back pressure
Refrigerant	R134a
Evaporating	-25 to 10 °C
Expansion	Capillar/Valve
Compressor cooling	Fan cooled
Max. ambient temp.	43 °C
Nominal Performance Cycle C: Cooling capacity	893 W
Nominal Performance Cycle C: Input power	497 W
Nominal Performance Cycle C: EER	1.54 kcal/Wh
Nominal Performance Cycle C: COP	1.79 W/W
Nominal Performance Cycle C: Current	2.82 A
Nominal Performance Cycle D: Cooling capacity	1070 W
Nominal Performance Cycle D: Input power	520 W
Nominal Performance Cycle D: EER	1.76 kcal/Wh
Nominal Performance Cycle D: COP	2.05 W/W
Nominal Performance Cycle D: Current	2.89 A
Test Conditions: Evaporating temp.	5.0 / 7.2 °C
Test Conditions: Condensing temp.	55.0 / 55.0 °C
Test Conditions: Liq.t. entering expan.	55.0 / 46.0 °C
Test Conditions: Ambient t. and return	32.0 / 35.0 °C
Test Conditions: Tens/Freq	220V 50Hz / 220V 50Hz
Electrical Components: Relay	9660 A 138 / MTRP 43
Electrical Components: Pick-Up	6.20 / 6.10 A
Electrical Components: Drop-Out	5.25 / 5.20 A
Electrical Components: Protector	MRT26AMK / T0181
Electrical Components: Current	11.1 / 11.1 A
Electrical Components: Time check	7.5-14 / 7.5-14 seg
Electrical Components: Disc temp. (Open/Close)	105.0/61.0 / 105.0/61.0 °C
Electrical Components: Starting capacitor	47-56/330 µF/V/V
Internal Diam. (MM): Suction/Service	8.1
Internal Diam. (MM): Service/Suction	8.1
Internal Diam. (MM): Discharge	6.5
