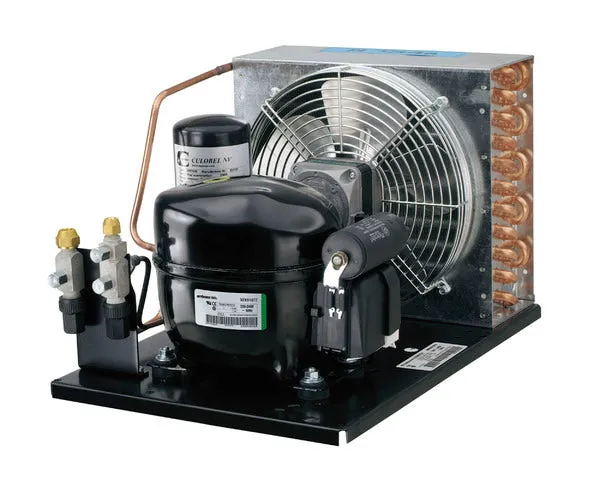

U.condensadora UNEU2155GK 3/4 LBP R404a | 569QA8212AA

Esta unidad condensadora EMBRACO, modelo T 2155GK, está diseñada para aplicaciones de refrigeración comercial que requieren baja presión de retorno y el refrigerante R-404A. Incorpora un compresor hermético alternativo y es ideal para sistemas de refrigeración de baja temperatura.

Características Principales:

• Compressor type: Hermetic reciprocating compressor
• Refrigerant: R-404A
• Application type: Low Back Pressure R404A
• Motor type: CSCR
• Starting torque: HST - Hight starting torque
• Expansion device: Capillary tube or Expansion valve

Especificaciones Técnicas:

Característica	Valor
Designation	T 2155GK
Nominal voltage frequency	220-240 V 50 Hz
Evaporating temperature range	-40°C to -10°C (-40°F to 14°F)
Displacement	14.50 cm³ (0.885 cu.in)
Lubricant charge	550 ml (18.60 fl.oz.)
Lubricant type viscosity	ESTER/ISO22
Weight with oil charge	16.35 kg (36.04 lb.)
Start winding resistance	9.15 Ω at 25°C (77°F) +/- 8%
Run winding resistance	4.10 Ω at 25°C (77°F)] +/- 8%
Locked rotor amperage 50hz	18.00 A
Full load amperage lmbp 50hz	2.03 A

Compatibilidad:

• Refrigerant: R-404A
• Application: Low Back Pressure refrigeration systems
• Voltage frequency: 220-240 V 50 Hz

Beneficios:

High starting torque for reliable operation, manufactured by Embraco (a reputable brand), certified by IMQ and UL 984 standards.

Certificaciones:

• IMQ
• UL 984
